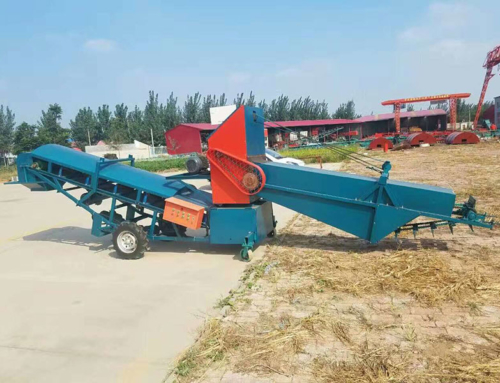

Special equipment for shovel grain, grain collection and grain transportation.

The structure is simple and compact, reasonable in design, small in total power, high in efficiency, large in output, convenient in operation,  less dust, and free from noise.

Composed of two parts: the shovel hopper two-direction spiral auger, the conveyor, the distribution box, and the hydraulic series of the wheel. The machine is equipped with a gear shifting device for electric walking.

The grain is fed with double helix to increase the area of ​​grain intake, and the efficiency of taking grain is high, and the number of movements of subsequent conveying equipment is reduced.
Conveyor and spiral parts can be lifted and lowered by manual hydraulic cylinders. According to the needs of the site, grain can be taken on the ground to clear the ground cage.
The unique way of taking grain can reduce the breakage of grain, and there is basically no grain in the working face after the operation.
The grain conveyor is fully enclosed and has no dust when it is released.
This machine is equipped with a limited-baffle device, which is adjusted according to the required amount of conveying. The maximum production capacity is 100 tons/hour.
The total length of the shovel hopper can be determined according to the width of the door, generally 2.1, 2.3, 2.6M.
The rotating coarse grain connected to the main unit can be rotated 360 degrees. For easy connection with other conveyors, it is equipped with a 6M parallel portable conveyor.
